• Used in High frequency transformer.
• Applied to home appliances and electrical products, machines.
• E core with high permeability for common mode choke and broadband applications
• Typically gives output up to 4W isolated and 12watt across non-isolated
• Mainly used in LED bulbs and mobile chargers and adopters
• Drawing available

Download Available Mould Drawings

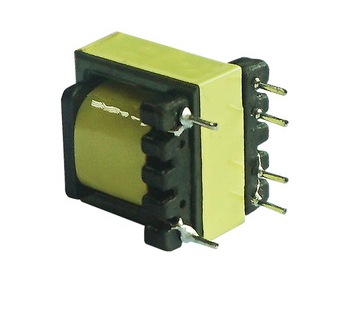

• EE-13-6-6-VERT-10-PIN

• EE-13-6-6-HORZ-42-PIN

• EE-13-6-6-VERT-42-PIN

• EE-13-6-6-VERT-42-PIN-(4-PIN)

• EE-13-6-6-HORZ-45-PIN-(10-PIN)

• EE-13-6-6-VERT-55-PIN

• Used in High frequency transformer.
• Applied to home appliances and electrical products, machines.
• E core with high permeability for common mode choke and broadband applications
• Typically gives output up to 4W isolated and 12watt across non-isolated
• Mainly used in LED bulbs and mobile chargers and adopters

• Used in led drivers, instrumentation, automotive amplifier and types of home appliances.
• Application: Audio, Current, Electronic, Instrument, Lighting, Potential, Power, Pulse, Reactor
• E core with high permeability for common mode choke and broadband applications
• Typically gives output up to 8W isolated and 22w across non-isolated.

• Used in led drivers, instrumentation, automotive amplifier and types of home appliances.
• Application: Audio, Current, Electronic, Instrument, Lighting, Potential, Power, Pulse, Reactor
• E core with high permeability for common mode choke and broadband applications
• Typically gives output up to 8W isolated and 22w across non-isolated.
• Drawing available

Download Available Mould Drawings

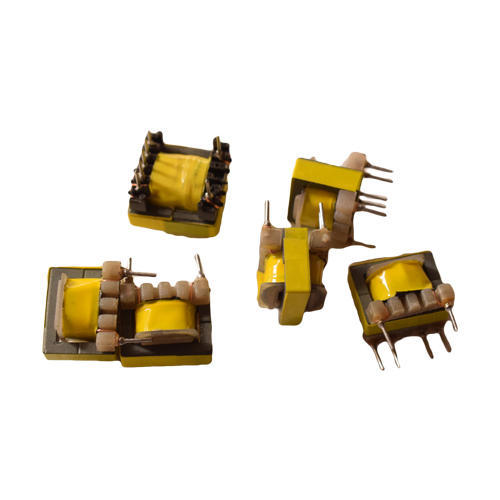

• EE-16-8-5-HORZ-55-PIN

• EE-16-8-5-VERT-55-PIN

• EE-16-8-5-VERT-22-PIN

• EE-16-8-5-VERT-44-PIN

• Used in led drivers , medical instruments, instrumentation, automotive amplifier and types of home appliances
• Application: Audio, Current, Electronic, Instrument, Lighting, Potential, Power, Pulse, Reactor.
• E core with high permeability for common mode choke and broadband applications.
• Typically gives output up to 11W isolated and 25w across non-isolated.
• Drawing available

Download Available Mould Drawings

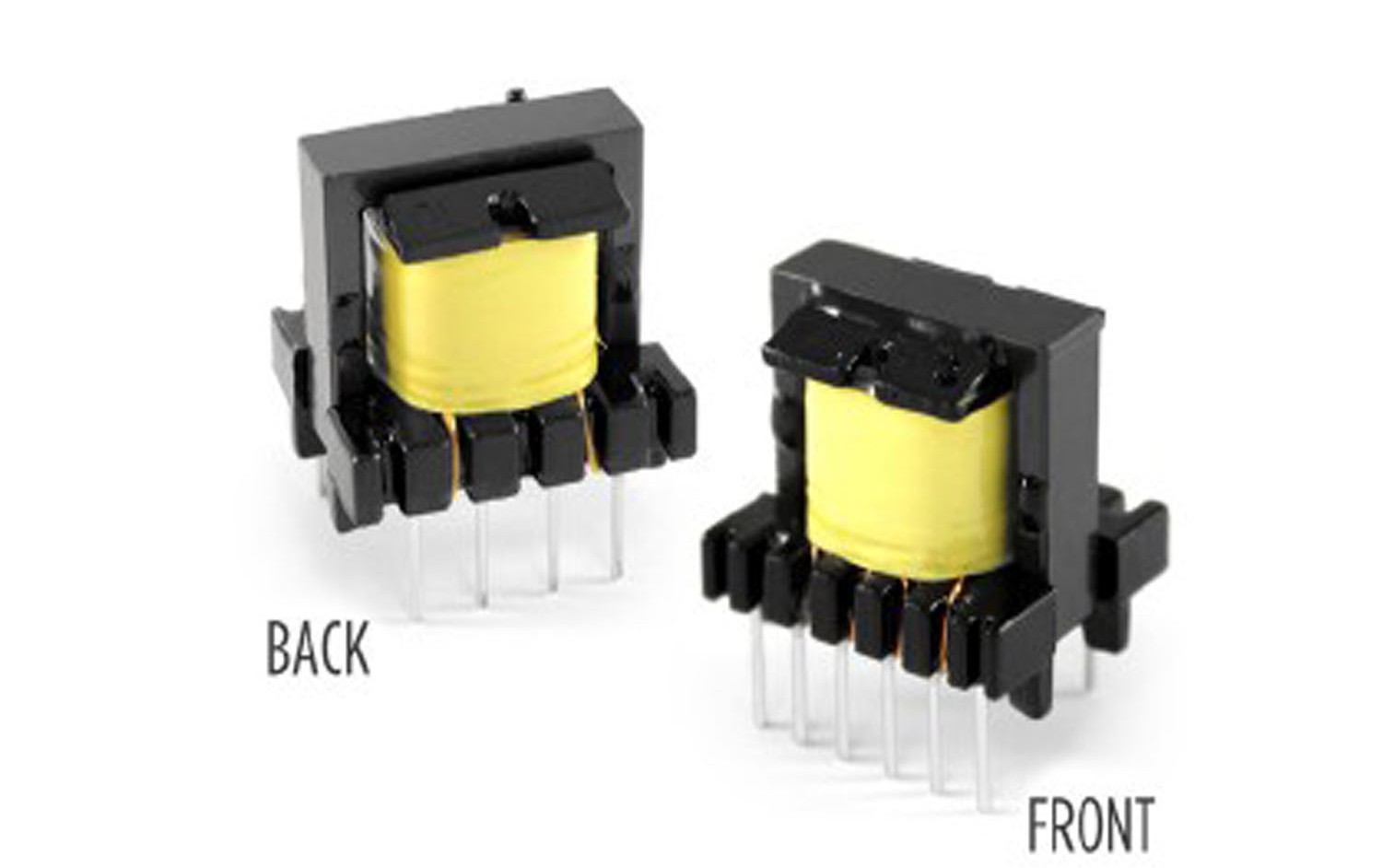

• EE-19-8-5-VERT-43-PIN

• EE-19-8-5-VERT-44-PIN

• EE-19-8-5-VERT-55-PIN

• Used for general purpose application like power supply, led driver, inductors .
• Suitable for the design of dvdplayers,tv,monitors of computer and other electrical equipment
• Typically gives output up to 18 W isolated and around 40w in non-isolated.
• Drawing available
• Low maintenance, High efficiency, Optimum resistance to heat, Low winding resistance

Download Available Mould Drawings

• EE-20-10-6-HORZ-44-PIN-16MM

• EE-20-10-6-HORZ-55-PIN

• EE-20-10-6-VERT-10-PIN-4MM-12MM

• EE-20-10-6-VERT-22-PIN-10MM

• EE-20-10-6-VERT-22-PIN-12MM

• EE-20-10-6-VERT-44-PIN

• EE-20-10-6-VERT-55-5MM-13MM

• EE-20-10-6-VERT-55-PIN-4MM-10MM

• EE-20-10-6-VERT-55-PIN-4MM-11MM

• Suitable for the design of dvdplayers,tv,monitors of computer and other electrical equipment, Power supplies, led drivers
• Typically gives output up to 22W to 24W
• Drawing available
• Low maintenance, High efficiency

Download Available Mould Drawings

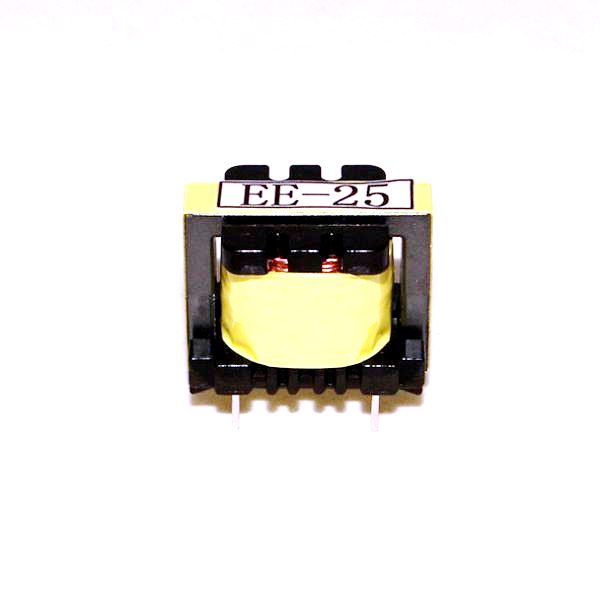

• EE-25-9-6-CMC-VERT-4-PIN

• EE-25-9-6-HORZ-4-PIN

• EE-25-9-6-HORZ-42-PIN

• EE-25-9-6-VERT-44-PIN

• EE-25-9-6-VERT-55-PIN

• EE-25-9-6-VERT-56-PIN

• Used to regulate the power supply output and are a preferred choice for VHF or Very High Frequency
• Wireless equipment's, led drivers, dc-dc converters and smps power supplies
• typically gives output up to 30watt
• Drawing available, Low maintenance, Less heat generation high frq. Operatable.
• Optimum resistance to weather and abrasion.

Download Available Mould Drawings

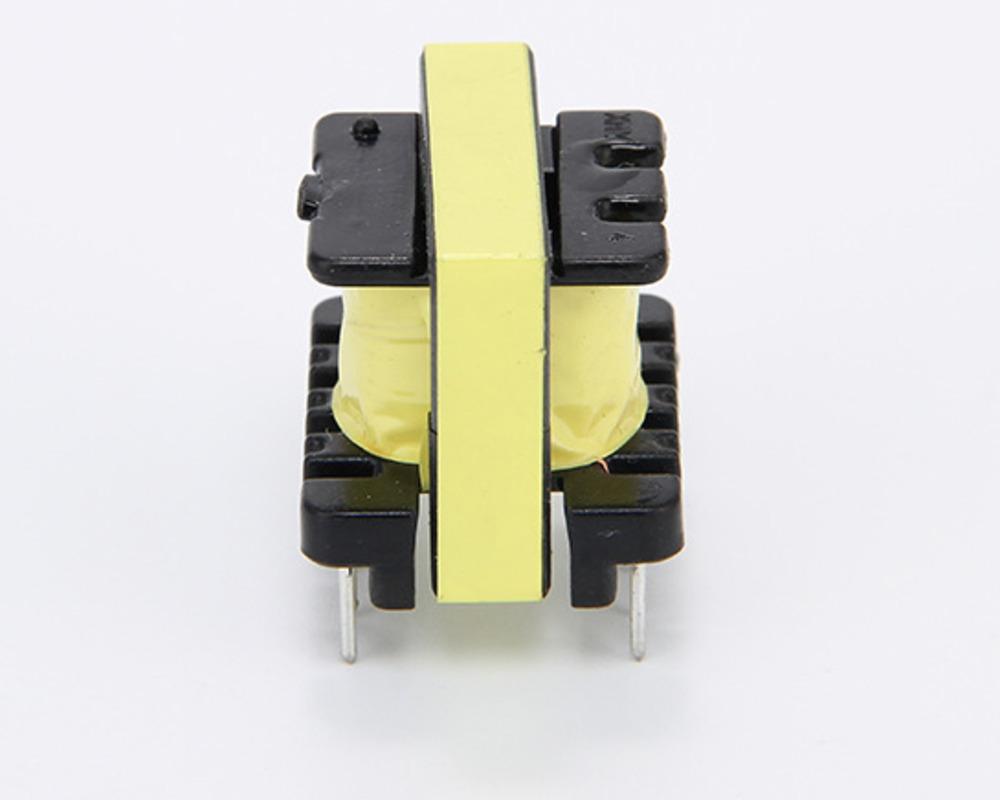

• EE-25-13-7-HORZ-10-PIN-5MM-20MM

• EE-25-13-7-HORZ-10-PIN-5MM-22MM

• EE-25-13-7-HORZ-44-PIN

• EE-25-13-7-VERT-44-PIN

• EE-25-13-7-VERT-55-PIN-4MM-12.5MM

• EE-25-13-7-VERT-55-PIN-5MM-13.5MM

• EE-25-13-7-VERT-66-PIN

• Typically used in telecom sectors, dc-dc converters, led street lights, power supplies, smps etc.
• Typically gives output approx. 40watt
• Drawing available
• Low heat generation, High efficiency, Low maintenance, high frqoperatable .

Download Available Mould Drawings

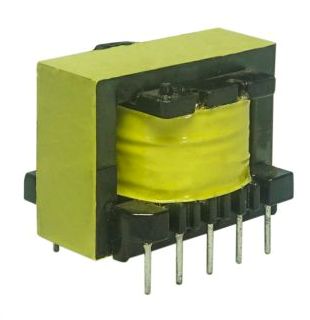

• EE-28-VERT-55-PIN

• EE-28-VERT-66-PIN

• EE-28-VERT-88-PIN

• Supply power to electronic devices such as parts of computers that include motherboard, and CD drive, power supplies, telecom industries, invertors, led drivers and line filters etc.
• Typically gives output approx. 40watt
• Drawing available
• Less leakage induction, Optimum resistance to heat, High power output

Download Available Mould Drawings

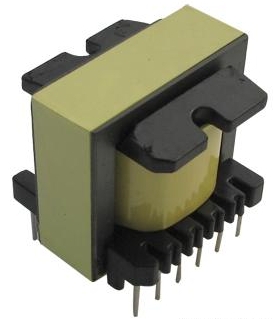

• EE-30-HORZ-55-PIN
